Conaxsat Trio

Features:

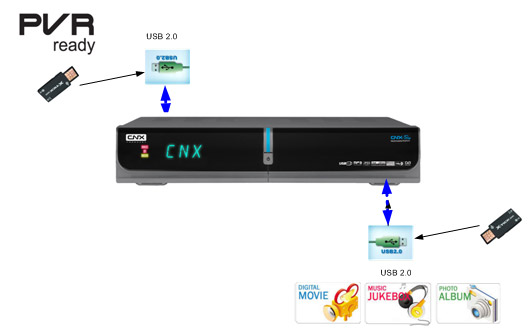

- Personal Video Recorder (PVR) Ready via USB 2.0
- Reserve Recording in EPG Mode
- Recorded file play on PC
- Upgrade Software & Update Channel Database through USB 2.0 Port
and RS232
- Two USB 2.0 Host for USB Storage Devices (e.g. External HDD, USB Memory, etc)
- MP3/JPEG File Store and Play via USB 2.0
- Vacuum Fluorescent Display (VFD) Type of Front Panel Display
- MPEG-II Digital & Fully DVB Compliant.
- C/KU band control for each antenna
- LNB Tone Switch 22KHz mode on/off'- Multi-LNB controlled by DiSEqC 1.0, 1.2 and USALS'- Total 5,000 Channels Programmable
- Blind Scan
- Closed Caption Support
- Parental Lock
- PAL/NTSC automatic conversion
- Picture In Graphic (PIG)'- Teletext and subtitle directly from the On-screen Display (OSD)
- Electronic Program Guide (EPG) for On Screen Channel Information
- Zoom Function by 2x…..4x
- Game function with Stereo Sound
- Dolby Digital Bitstream Out through S/PDIF
- CVBS Video & Audio Output via RCA
- Component Y/Pb/Pr Output via RCA
- S-Video Output
- Universal Remote Control
- Multi-language supported for Menu and OSD
- Built-in Smart Card Reader

Specifications:

Conditional Access Interface
- SMART CARD                    1 Slot: ISO 7816, GSM11.11 and EMV (payment systems) compatibility

 Tuner & Channel
- Type                                     1 ´ F Type, IEC169-24, Female
- Frequency Range              950MHz to 2150MHz
- RF Impedance                   75 Ohm unbanlanced
- Signal Level                       -65 to -25 dBm
- LNB Power                         13.5/18.5Vdc +/- 5%, 0.5Amax, Overload Protected
- 22KHz Tone                        Frequency : 22KHz +/- 2KHz, 0.6Vpp +/- 0.2V
- DiSEqC Control                 Version1.0, 1.2, Tone burst A/B
- Demodulation                    QPSK
- Input Symbol Rate              2~45 Ms/s, SCPC/MCPC
- FEC Decoder                     Convolution Code Rate 1/2, 2/3, 3/4, 5/6 and 7/8
                                                With Constraint Length K = 7

 System & Memory
- Main Processor                 32-bit ARM946 RISC Processor
- Flash Memory                    4 Mbytes
- System Memory                 32 Mbytes
- Channel Capacity              Digital Channel: 5,000
- Front                                    VFD Display (3 Icon, 5 digit Alphanumeric)

MPEG Transport Stream & A/V Decoding
- Transport Stream              MPEG-2 ISO/IEC 13818 Transport Stream Specification
- Profile Level                       MPEG-2 MP@ML
- Input Rate                           Max. 90Mbit/s
- Aspect Ratio                       4:3, 16:9, Letter Box
- Frame Rate                        25Hz for PAL, 30Hz for NTSC
- Video Resolution              720x576(PAL), 720x480(NTSC)
- Teletext                               Through VBI
- Audio Decoding                 MPEG/MusiCam Layer I & II
- Audio Mode                         Single Channel/Dual Channel Joint Stereo/Stereo
- Frequency Response      20~20kHz, <+/-2dB
                                                60Hz ~ 18kHz <+/- 0.5dB
- Sampling Rate                  32, 44.1, 48KHz

A/V & Date In/Out
- RCA Output                        CVBS, L, R Output(Yellow, White, Red Jack) with Volume Control Component Video(YPbPr) Out
- S-VHS Output                     4 Pin Mini
- SPDIF                                   Dolby Digital Bitstream Out(Coaxal, Optical)
- Data Interface
- RS-232, Bit Rate: 115,200baud
- Connector: 9-pin D-sub Male type
- USB : USB 2.0, Type A Connector, 3 Ports:
- 2 ports: PVR Ready, Front and Rear
- 1 port: Multi-media files Read and Play

Multi-media Player File Format
- Movie format                       MPEG1, 2, 4 (MPG, MPEG, DAT, VOB)
                                                AVI (DivX 3.x/4.x/5.x, XviD (without GMC, Qpel option)
- Music format                      MP3, WMA, AC3, OGG Vorbis
- Picture format                    JPEG
- Subtitle format                   SMI, SRT, SUB

RF Modulator
- RF-Connector                    75 ohm F-Type
- Frequency Range                             VHF CH3, CH4
- TV Standard                        NTSC
- Audio Output                       Mono with Volume Control

Power Supply
- Input Voltage                      AC 90V ~ 250V, 50Hz ~ 60Hz
- Power Consumption        Max 45W
- Standby Power                   <= 10W
Consumption
- Protection                           Separate Internal Fuse
The input shall the lighting protection

Physical Specification
- Size(WxHxD)                      290mm x 50mm x220mm
- Weight                                 3.0 KG

Environmental Condition
- Operating Temperature   0 °C ~ 40 °C
- Storage Temperature       -10 °C ~ 50 °C
- Operating Humidity Range             10~85% RH, Non-condensing
- Storage Humidity Range 5~90% RH, Non-condensing
