Features:

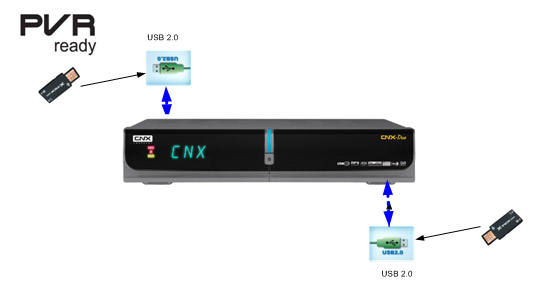

- Personal Video Recorder (PVR) Ready via USB 2.0
- Reserve Recording in EPG Mode
- Recorded file play on PC
- Upgrade Software & Update Channel Database through USB 2.0 Port
and RS232
- Two USB 2.0 Host for USB Storage Devices (e.g. External HDD, USB Memory, etc)
- MP3/JPEG File Store and Play via USB 2.0
- Vacuum Fluorescent Display (VFD) Type of Front Panel Display
- MPEG-II Digital & Fully DVB Compliant.
- C/KU band control for each antenna
- LNB Tone Switch 22KHz mode on/off'- Multi-LNB controlled by DiSEqC 1.0, 1.2
and USALS'- Total 5,000 Channels Programmable
- Blind Scan
- Closed Caption Support
- Parental Lock
- PAL/NTSC automatic conversion
- Picture In Graphic (PIG)'- Teletext and subtitle directly from the On-screen
Display (OSD)
- Electronic Program Guide (EPG) for On Screen Channel Information
- Zoom Function by 2x…..4x
- Game function with Stereo Sound
- Dolby Digital Bitstream Out through S/PDIF
- CVBS Video & Audio Output via RCA
- Component Y/Pb/Pr Output via RCA
- S-Video Output
- Universal Remote Control
- Multi-language supported for Menu and OSD
- Built-in Smart Card Reader
Specifications:
Conditional Access Interface
- SMART CARD
1 Slot: ISO 7816, GSM11.11 and EMV (payment systems) compatibility
Tuner & Channel
- Type
1 ´ F Type, IEC169-24, Female
- Frequency Range 950MHz to 2150MHz
- RF Impedance
75 Ohm unbanlanced
- Signal Level
-65 to -25 dBm
- LNB Power
13.5/18.5Vdc +/- 5%, 0.5Amax, Overload Protected
- 22KHz Tone
Frequency : 22KHz +/- 2KHz, 0.6Vpp +/- 0.2V
- DiSEqC Control
Version1.0, 1.2, Tone burst A/B
- Demodulation
QPSK
- Input Symbol Rate 2~45 Ms/s, SCPC/MCPC
- FEC Decoder
Convolution Code Rate 1/2, 2/3, 3/4, 5/6 and 7/8 With Constraint Length K = 7
System & Memory
- Main Processor
32-bit ARM946 RISC Processor
- Flash Memory
4 Mbytes
- System Memory
32 Mbytes
- Channel Capacity
Digital Channel: 5,000
- Front
VFD Display (3 Icon, 5 digit Alphanumeric)
MPEG Transport Stream & A/V Decoding
- Transport Stream
MPEG-2 ISO/IEC 13818 Transport Stream Specification
- Profile Level
MPEG-2 MP@ML
- Input Rate
Max. 90Mbit/s
- Aspect Ratio
4:3, 16:9, Letter Box
- Frame Rate
25Hz for PAL, 30Hz for NTSC
- Video Resolution
720x576(PAL), 720x480(NTSC)
- Teletext
Through VBI
- Audio Decoding
MPEG/MusiCam Layer I & II
- Audio Mode
Single Channel/Dual Channel Joint Stereo/Stereo
- Frequency Response 20~20kHz, <+/-2dB 60Hz ~
18kHz <+/- 0.5dB
- Sampling Rate
32, 44.1, 48KHz
A/V & Date In/Out
- RCA Output
CVBS, L, R Output(Yellow, White, Red Jack) with Volume Control Component Video(YPbPr)
Out
- S-VHS Output
4 Pin Mini
- SPDIF
Dolby Digital Bitstream Out(Coaxal, Optical)
- Data Interface
- RS-232, Bit Rate: 115,200baud
- Connector: 9-pin D-sub Male type
- USB : USB 2.0, Type A Connector, 2Port
RF Modulator
- RF-Connector
75 ohm F-Type
- Frequency Range
VHF CH3, CH4
- TV Standard
NTSC
- Audio Output
Mono with Volume Control
Power Supply
- Input Voltage
AC 90V ~ 250V, 50Hz ~ 60Hz
- Power Consumption Max 45W
- Standby Power
<= 10W Consumption
- Protection
Separate Internal Fuse
Physical Specification
- Size(WxHxD)
290mm x 50mm x220mm
- Weight
2.5 KG
Environmental Condition
- Operating Temperature 0 °C ~ 40 °C
- Storage Temperature -10 °C ~ 50 °C
- Operating Humidity Range 10~85% RH, Non-condensing
- Storage Humidity Range 5~90% RH, Non-condensing
